Multi-lane Liquid Sachet Packing Machine

Efficient multi-lane liquid sachet packing machine with high-speed performance, precise filling, and hygienic design—ideal for food, pharma, and cosmetic industries.

High Efficiency: Simultaneous multi-lane operation greatly increases production output.
Accurate Filling: Advanced pump systems ensure consistent and precise liquid dosing.
Hygienic Design: Stainless steel structure meets food and pharmaceutical safety standards.
User-Friendly Interface: Easy-to-operate touch screen for quick setup and adjustments.
Flexible Application: Suitable for various liquids—honey, sauces, oils, and more.

Multi-lane Liquid Sachet Packing Machine Description

We supply high-performance Multi-lane Liquid Sachet Packing Machines designed to meet the fast-paced demands of modern packaging lines. Built with precision and durability in mind, this machine is ideal for efficiently filling and sealing a variety of liquid products into compact sachets, making it a valuable solution for manufacturers seeking consistent quality and high-speed output.

Our equipment supports multiple lanes (4, 6, 8, or more), enabling simultaneous packaging of up to hundreds of sachets per hour. It features servo-driven pumps and PLC control systems that guarantee accurate dosing, minimal waste, and easy adjustment. Each component is crafted from food-grade stainless steel, ensuring hygiene and compliance with industry standards.

This machine is widely used in the food, beverage, cosmetics, and pharmaceutical industries. It is perfect for packing sauces, shampoos, oils, disinfectants, and similar liquid products. By automating sachet filling and sealing, it helps businesses reduce labor costs, improve production efficiency, and maintain packaging consistency.

Whether you’re a packer, a startup in the FMCG sector, or an established manufacturer upgrading your line, our Multi-lane Liquid Sachet Packing Machine provides the speed, precision, and reliability you need to stay competitive in a high-demand market.

TECHNICAL SPECIFICATION

Model	DMV320	DMV420	DMV520	DMV620	DMV720	DMV1050
Max Film Width	320mm	420mm	520mm	620mm	720mm	1050mm
Film thickness	0.07-0.15mm
Film Material	PE, PP, POPP/CPP, POPP/VMCPP, BOPP/PE, NY/PE, PET/PET
Bag Size	W:60-150mm	W:60-200mm	W:90-250mm	W:100-300mm	W:120-350mm	W:200-500mm
Bag Size	L:50-200mm	L:60-300mm	L:80-350mm	L:100-400mm	L:100-450mm	L:100-800mm
Types of Bag	Pillow bag, Gusset bag, Punching bag, Connecting bag
Packing Capacity	10-500g	50-1500g	100-3000g	200-4000g	500-5000g	1-15kg
Packaging Speed	25-70bpm		25-60bpm	25-50bpm	15-50bpm	5-20bpm
Air Consumption	0.3m³/min, 0.8MPa	0.4m³/min, 0.8MPa		0.5m³/min, 0.8MPa		0.6m³/min, 0.8MPa
Voltage	220V(1phase) 50/60Hz		380V(3phase) 50/60Hz
Power	2200W		3000W	4000W		6000W
Size(LxWxH mm)	1115x800x1370	1530x970x1700	1430x1200x1700	1630x1340x2100	1630x1580x2200	2100x1900x2700
Total Weight(Kg)	300	450	650	700	800	1000

Smart Packing Starts Here

Boost efficiency and precision with a custom liquid sachet packing solution. Contact us today.

Get Instant Quote

Products Categories

Vertical Form Fill Seal

Vertical Packaging Machine

Multi-lane Packaging Machine

Horizontal Packaging Machine

Rotary Packaging Machine

Big Bag Packaging Machine

Sachet Pure Water Machine

Water Filling Machine

Secondary Packaging Machine

Get A Free Quote

Applications

Food & Beverage Industry
Perfect for small-dose condiments like ketchup, soy sauce, vinegar, and edible oil.
Also ideal for instant drink mixes, flavored syrups, or liquid concentrates in stick packs or flat sachets.
Pharmaceutical & Healthcare Industry
Used for packing oral liquid medications, electrolyte solutions, and herbal extracts.
Suitable for single-dose therapeutic liquids, offering convenience and hygiene in patient use.
Cosmetic & Personal Care Products
Applies to liquid soap, shampoo, conditioner, hand sanitizer, and facial serums.
Prevalent in sample-size sachet packaging for promotional campaigns or travel kits.
Chemical & Agrochemicals
Effective for packing cleaning liquids, detergent gels, and other low-viscosity household chemicals.
Suitable for small sachets of plant nutrients, pesticide liquids, or organic solutions.

Multi-lane Liquid Sachet Packing Machine Video

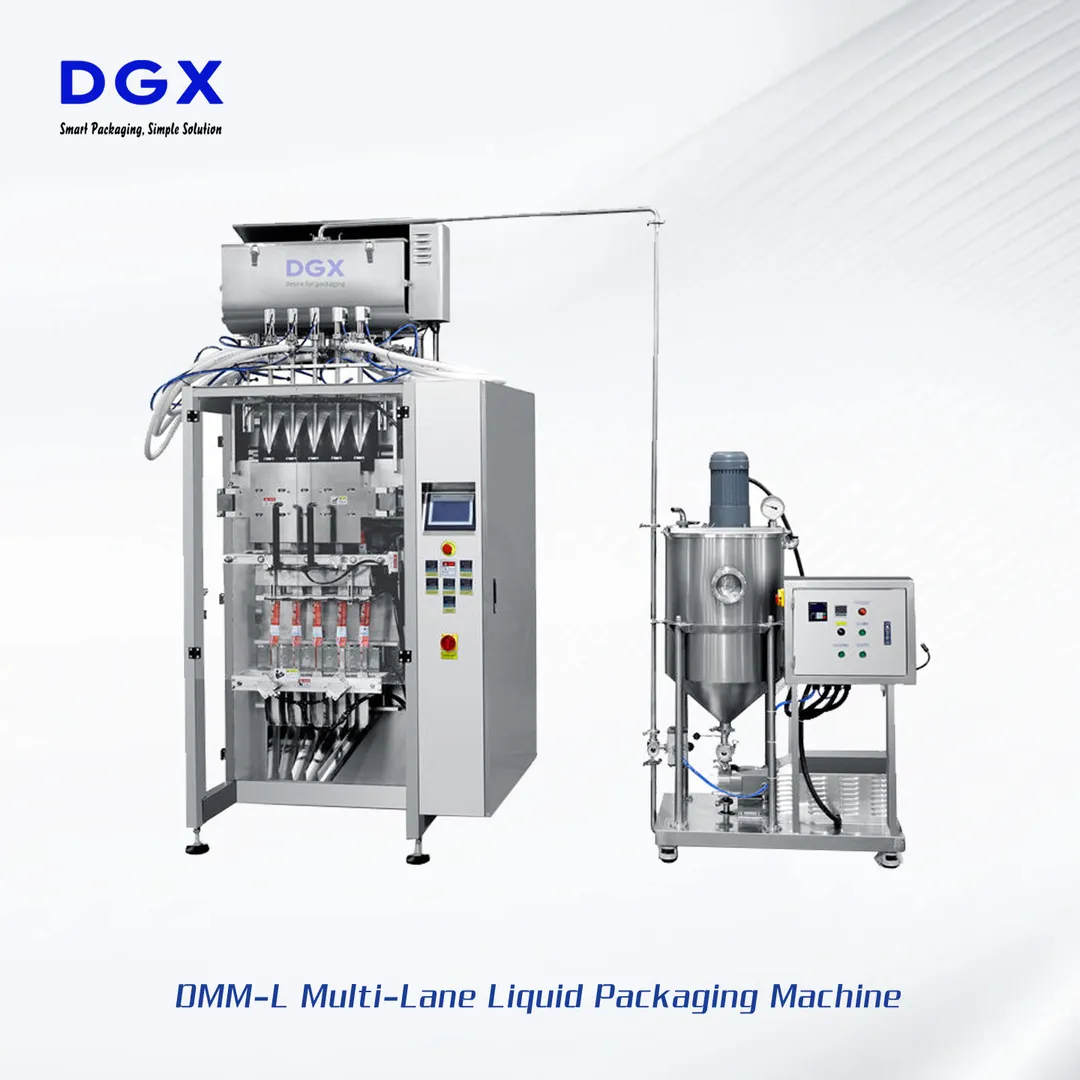

Multi-lane Packaging Machine for Liquid of Stick Bag

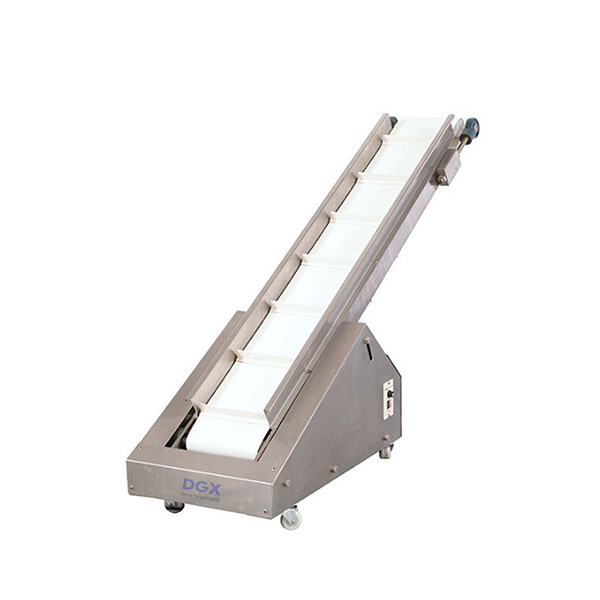

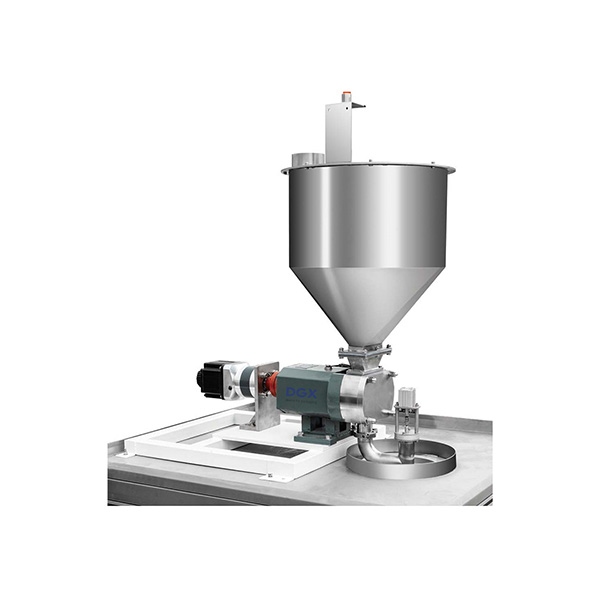

AUXILIARY EQUIPMENT

FAQs of Multi-lane Liquid Sachet Packing Machine

1.Can sachet size and volume be customized?

Yes, sachet dimensions, fill volume, and sealing styles can be tailored to your specific product and market needs.

2.Is the machine easy to maintain?

Built with stainless steel and a modular design, it’s easy to clean, operate, and service for long-term reliability.

3.Can the machine handle different packaging materials?

Yes, it’s compatible with a variety of heat-sealable films, such as PET/PE, Paper/PE, and aluminum foil laminates.

4.Is operator training provided?

Yes, we provide detailed manuals, video tutorials, and remote or on-site training based on customer needs.

5.What safety features are included?

The machine includes emergency stop buttons, overload protection, and safety guards to ensure safe operation.

6.Can I integrate this machine with other equipment?

Definitely. It can be linked with cartoning, labeling, or boxing machines to form a complete automated line.

7.Can I request a sample test with my product?

Yes, you can send us your product, and we’ll conduct a sample packing test and share videos and results for your review.

The Multi-lane Liquid Sachet Packing Machine is a fully automatic solution engineered for high-speed, precision packaging of liquid products into compact sachets. Designed for efficiency, hygiene, and flexibility, it is widely used in food, pharmaceutical, cosmetic, and chemical industries. Whether you’re packaging sauces, gels, syrups, or cosmetic serums, this machine offers a reliable and scalable solution for modern production lines.

Key Performance Highlights

Multi-lane Operation: Available in 4, 6, 8, 10, or 12-lane configurations to meet varying output requirements.
High Output Capacity: Produces up to 240 sachets per minute, depending on the product and lane setup.
Precise Filling: Equipped with volumetric or servo-controlled pumps for high accuracy with minimal product waste.
Stable Performance: Built with industrial-grade components and PLC + HMI control systems for long-term reliability.

Machine Structure & Design

Frame Material: Constructed with SUS304 or SUS316 stainless steel, suitable for cleanroom and food-grade environments.
Filling System: Customizable pump types including piston, gear, peristaltic, or magnetic pump based on liquid characteristics.
Sealing Mechanism: High-quality heat sealing ensures tight, leak-proof sachets with options for back, 3-side or 4-side seal.
Film Roll Support: Handles a variety of laminated films like PET/PE, Paper/PE, and aluminum foil laminates.

Technology Features

Touchscreen Interface: User-friendly HMI supports multiple languages and intuitive operation.
Smart Sensors: Detect film alignment, fill volume, and sealing temperature in real time for consistent output.
Error Detection: Auto-stop functions for film misalignment, empty hopper, or sealing failure reduce downtime.
Recipe Memory: Store multiple product parameters for quick changeovers and minimal setup time.

Optional Features

Date code printing (thermal or inkjet)
Tear notch and euro-hole punching
Nitrogen flushing for extended shelf life
CIP (Clean-in-Place) system for liquid circuits
Online viscosity monitoring for product consistency

Why Choose Our Machine

Over 10 years of manufacturing experience in vertical sachet packing systems
Exported to 30+ countries, trusted by food, pharma, and personal care brands worldwide
Custom engineering solutions tailored to your factory layout and product needs
Strong after-sales support and remote diagnostics for faster troubleshooting
